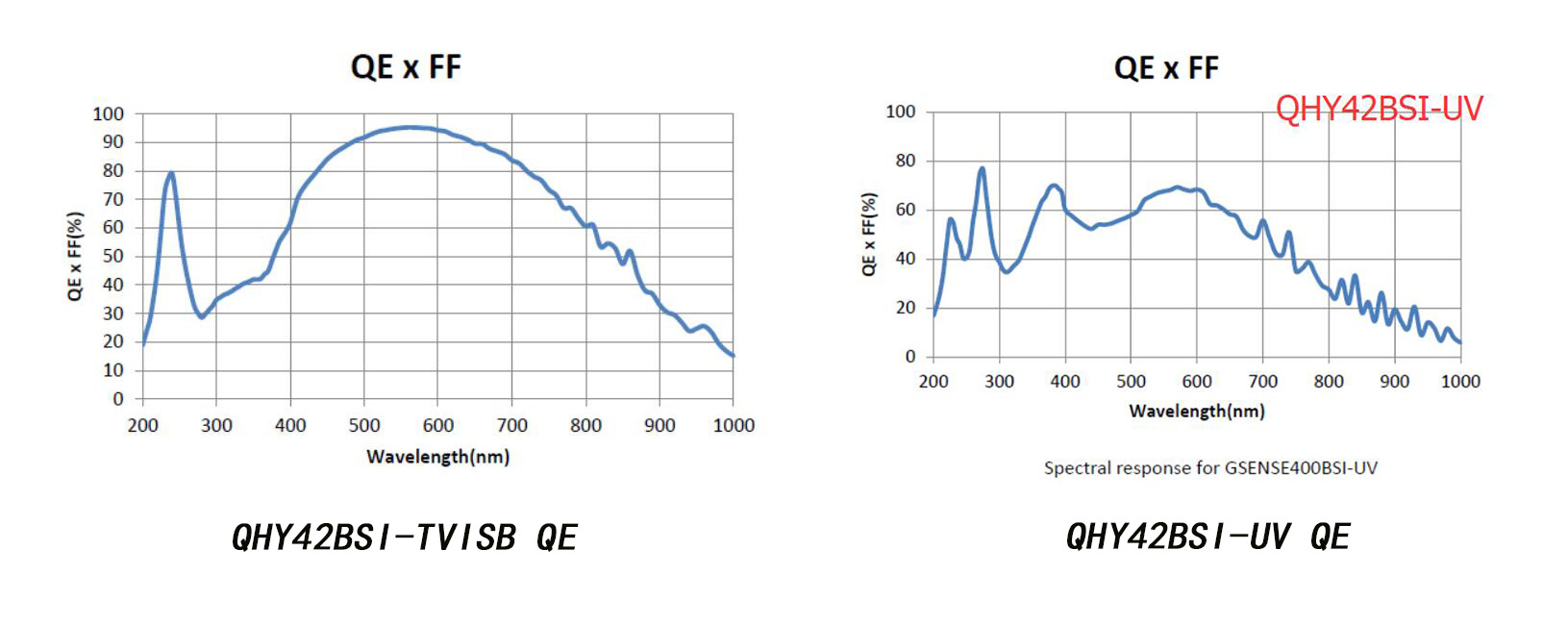

The low read noise and high QE make it possible to achieve high SNR even when imaging dim objects. Only 5 photons produce a SNR>3.
|
HY42/QHY42PRO SCIENTIFIC CMOS CAMERA SPECIFICATION
|
|
| Model | QHY42 |
| COMS Sensor | Gpixel Gense400 BSI / UV |
| Pixel Size | 11um x 11um |
| Sensor Surface Glass | Clear Glass / UV enhanced AR coating |
|
Effective Pixel Area
|
2048 x 2048
|
|
Effective Pixels
|
4 Megapixels
|
|
Effective Image Area
|
22.5mm x 22.5mm
|
|
Fullwell
|
89ke-
|
|
A/D
|
Dual 12-bit A/D (High Gain Channel and Low Gain Channel) *
Note: The QHY42 camera in stock is single channel outputs, it support 2048*2048 8/12bit single channel image output. The QHY42PRO camera has dual ADC channel with 2048*2*2048 8/12bit HDR image output. The QHY42 user can be upgraded without cost after QHY42PRO released. |
|
Sensor Size
|
Typical 2-inch
|
| Full Frame Rate and ROI Frame Rate |
QHY42
24FPS@2048*2048 12bit 24FPS@2048*2048 8bit 12FPS@4096*2048 12bit (Dual channel HDR output)
QHY42PRO 48FPS@4096*2048 dual 8bit (HDR mode) 24FPS@4096*2048 dual 12BIT (HDR mode) |
| Readout Noise | 1.7e- |
| Dark Current | TBD |
| Exposure Time Range | 20us-300sec |
| Anti-Glow Control | Yes. Can be enabled and disabled. Significant Glow Reduction |
| Shutter Type | Electric Rolling Shutter |
| Computer Interface | USB3.0 (in QHY42/HDR-USB3) 10GigaE Fiber (in QHY42/HDR-10G) |
| Built-in Image Buffer | 128MByte(512Mb) DDR2 memory in QHY42/HDR-USB3 1GByte(4Gb) DDR3 memory in QHY42/HDR-10G |
|
Cooling System
|
Dual Stage TEC cooler（-35C below ambient）
|
|
Anti-Dew Heater
|
Yes
|
|
Telescope Interface
|
M54/0.75 female thread on the fast installer/center adjust ring
|
| Optic Window Type |
AR+AR High Quality Multi-Layer Anti-Reflection Coating |
|
Back Focal Length
|
TBD
|
|
Weigth
|
TBD
|
|
|
|
| Free Shipping | No |
|---|
